PRODUCT DOCUMENTATION

Technical information.
Matched to the opening.

Review core product information for the automatic swing-door operators Fastnet supplies, installs and services. Final equipment selection must account for the complete door, hardware and site conditions.

AUTOMATIC SWING-DOOR OPERATORS

Three proven
operator families.

Specifications below summarize manufacturer literature. Confirm current documentation and the exact operator configuration before ordering or installation.

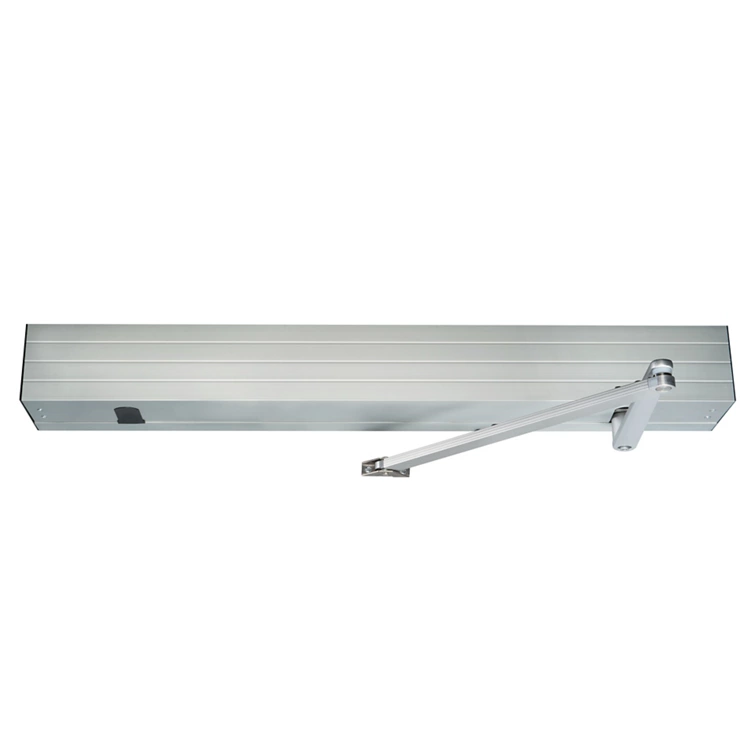

record SS8200 automatic swing-door operator in silver finish with push arm
Heavy-duty low-energy swing-door operator

record SS8200

Designed for demanding interior or exterior openings, with programmable controls and integrated interfaces for common entrance hardware.

Door arrangements
Single, pairs or double egress
Applications
Interior or exterior
Operation
Low-energy automatic swing door
Controls
SimpleLynk communications display
Hardware interface
Built-in electric-strike interface
Available finishes
Clear or dark bronze anodized

Key features

  • Push-to-start capability
  • Latch assist for stack-pressure conditions
  • Breakaway arm protection
  • Multiple push and pull arm options
Manufacturer literature Fastnet product page

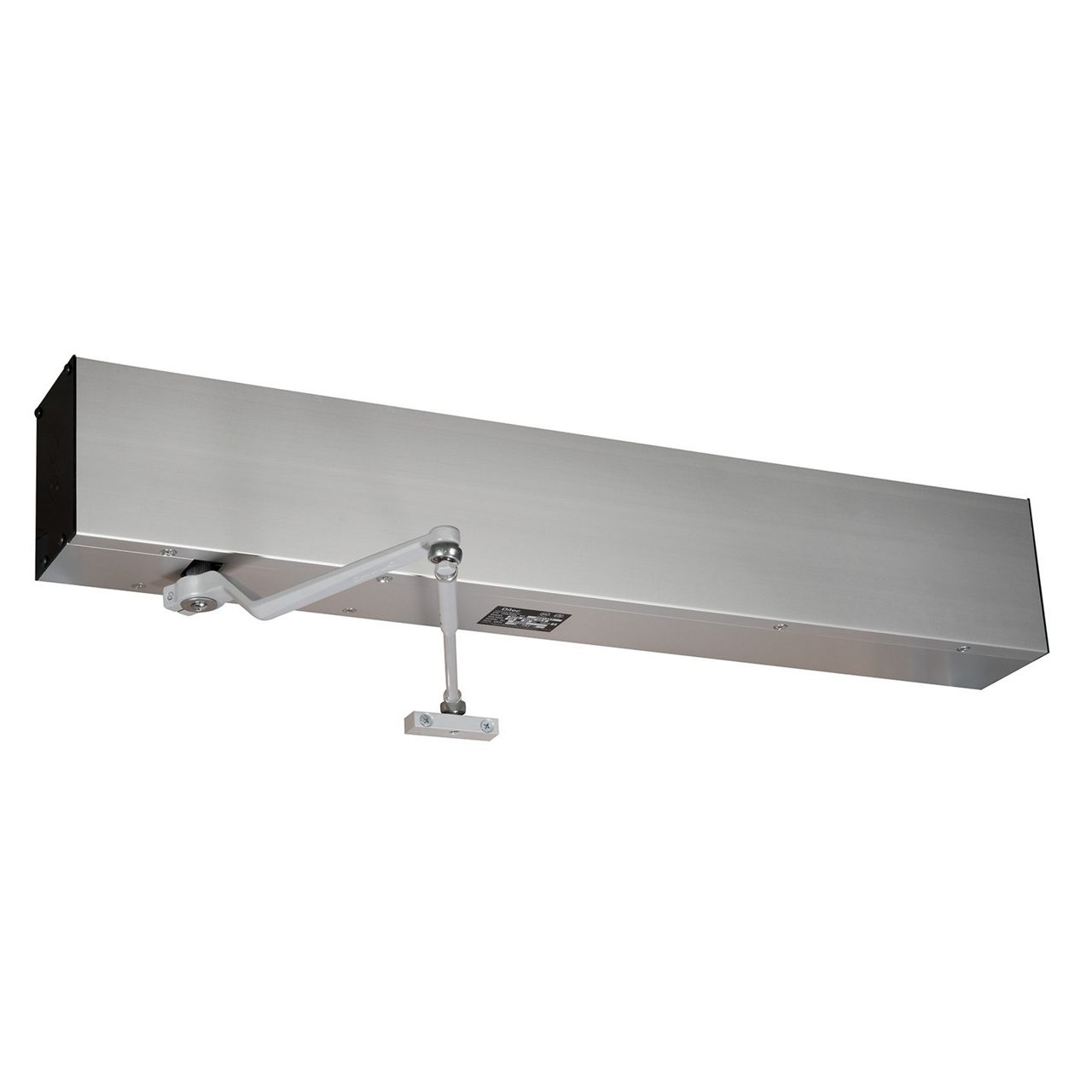

record HA8-SP automatic swing-door operator with push arm
Standard-profile low-energy swing-door operator

record HA8-SP

A commercial operator built for sustained use in high-traffic interior and exterior applications, with flexible surface or concealed mounting.

Header profile
6.5 in × 4.5 in
Motor
1/8 hp
Operating voltage
115 VAC
Door arrangements
Single, pairs or double egress
Mounting
Surface or concealed
Compliance
ANSI/BHMA A156.19 and UL10C

Key features

  • Non-handed configuration
  • Power Assist and Push & Go
  • Stack-pressure compensation
  • Built-in strike or magnetic-lock relay
Manufacturer literature Fastnet product page

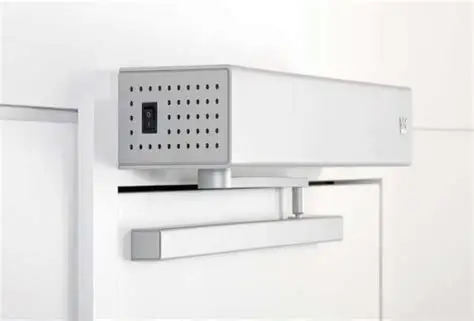

dormakaba ED100 or ED250 electromechanical swing-door operator with slide channel
Electromechanical swing-door operator family

dormakaba ED100 / ED250

A modular operator platform with integrated drive, control, power supply and user interface for accessible and demanding commercial openings.

ED100 use
Low-energy or power-operated pedestrian doors
ED100 standards
ANSI A156.10, ANSI A156.19 and UL325
ED250 use
High-traffic and heavy-duty openings
ED250 capacity
Doors up to 800 lb
Security interface
Built-in access-control connection
Hardware control
Integrated power supply and relay

Key features

  • Door-position status output
  • Adjustable close and latch on power loss
  • Hardware pre-load function
  • ED250 tested to one million cycles
Manufacturer literature Fastnet product page
APPLICATION REVIEW

Specifications are only
part of the selection.

Door size and weight, hinge or pivot geometry, reveal, wind exposure, stack pressure, traffic, fire-rating requirements and surrounding hardware can all affect the correct operator and arm configuration.

Send the door schedule, hardware set, opening photographs and project requirements for a coordinated review.

REQUEST TECHNICAL SUPPORT

Planning an automatic-door opening?

Tell us which operator you are considering and include the project location, door information, drawings or photographs.
